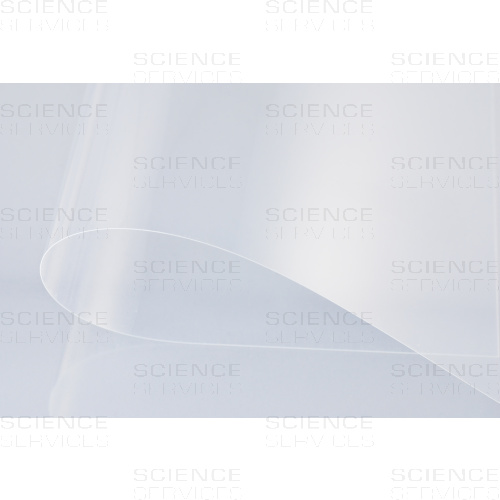

ACLAR® Fluoropolymer-Film, 203x317,5mm (8"x10"), 199µm (7.8mil)
ACLAR® is made from fluorinated-chlorinated resins. There are four basic film types–the homopolymer ACLAR® Rx Series, the copolymers ACLAR® 22A and 33C and the new ACLAR® UltRx. (Honeywell/Allied Signal). The chemical make-up of all ACLAR® products provide an exceptional moisture barrier. ACLAR® is crystal clear, biochemically inert, highly resistant to most chemicals and sterilizable by heat or radiation. ACLAR® is used widely in pharmaceutical, medical, sensitive electronics and military packaging.
ACLAR® 33C is a copolymer film consisting primarily of chlorotrifluoroethylene (CTFE). It offers an outstanding moisture barrier, excellent chemical resistance and minimal dimensional change (<2%), making it the best choice for use in microscopy.
- Crystal clear, high UV transparency– ideal for use in UV curing of embedding resin in microscopy.
- Chemically stable and biochemical\y inert– the product of choice for growing cell cultures.
- Low dielectric constant, high electric strength and dissipation factor– offers excellent cell attachment even through lengthy processing procedures.
- Low surface energy–and separates easily from epoxy.
- Exhibits no detectable autofluorescence– ideal for fluorescent microscopy.
- A non-flammable, non-aging co-polymer–
which is suited for sterilization by heat or UV.
- Crystalline melting point is 206°C (403°F)– stable in the SEM.
- Flexible and soft– can be sectioned without damage to the ultramicrotome knives.
- Stable for use with High Pressure Freezing.
ACLAR® film is now available in 7.8 mil (199µm) thickness and it is offered in a 8” x 10” sheet form with package quantities of 10 or 25.
ACLAR® Physical Data Sheet
(These are only typical values and are not to be interpreted as product specifications):
|Properties@ 73°F ~50% RH||English||Metric||Test Method|
|Gravity Specific||2.12||ASTM D1505|
|Yield 7.8 mil||1,677 in2/lb.||2.38m2/kg|
|Crystalline Melting Point||403°F||206°C||ASTM D4591|
|Dimensional Stability, 10 min @ 300°F
|Elongation (MD/TD)||50-125%||ASTM D882|
|Modulus, Secant (MD/TD)||185,000-200,000 psi||1276-1379 MPa||ASTM D882|
|Tear Strength, Graves (MD/TD)||425-525 g/mil||ASTM D1004|
|Water Vapor Transmission
Rate @ 100°F/ 100% RH
|0.003 gm/100 in2/day||0.047 gm/m2/day||ASTM F1249|
|Thermal Conductivity||4.7 x 10-4 cal-cm/cm2sec °C|
|Oxygen Index||100||ASTD D2683|
ACLAR® Chemical Data Sheet
|Chemicals||Average Weight Increase||Visible Effect on Sample|
|Carbon Tetrachloride||1.6%||Slightly flexible|
|Ethyl Acetate||6.0%||Very flexible|
|Ethyl Ether||5.2%||Very flexible|
|Ethylene Oxide||4.0%||Very flexible|
|All Acids (HCl, H2SO4..)||None||None|
Jiménez N et al, Gridded Aclar: Preparation methods and use for correlative light and electron microscopy of cell monolayers, by TEM and FIB-SEM.
J Microsc. 2010 Feb;237(2):208-20.
Kingsley RE et al., Preparation of cultured mammalian cells for transmission and scanning electron microscopy using Aclar film.
J Electron Microsc Tech., 10, 77-85 (1988).
Mawe GM et al, Ultrastructure of HRP-labeled neurons: a comparison of two sensitive techniques.
Brain Res Bull. 1983 Apr;10(4):551-8.
Masurovsky EB & Bunge RP, Aclar Film in Biological Electron Microscopy.
J Electron Microsc Tech. 1989 Jun;12(2):172-3.
Masurovsky EB & Bunge RP, Fluoroplastic coverslips for long-term nerve tissue culture.
Stain Technol. 1968 May;43(3):161-5.
