NanoSuit Solution für REM, wässrige Lösung, 5ml

NanoSuit® ist eine neuartige Technologie zur Betrachtung biologischer Proben in natürlichem, vitalem Zustand im Rasterelektronenmikroskop (REM). NanoSuit® bildet eine dünne, leitende Feuchtigkeitsbarriere zwischen Probe und Vakuumumgebung. Die Feuchtigkeit wird in der Probe gehalten. Einfach die Lösung auf das Objekt geben. Keine Fixierung oder Dehydrierung erforderlich.

Artikel für gruppiertes Produkt
Artikelname Menge
NanoSuit Solution l für REM, wässrige Lösung, 5ml


2.069,60 € 2.462,82 €
NanoSuit Solution III für Zellen, Bakterien, Viren, 5ml


2.069,60 € 2.462,82 €




Taking electron microscope images of biological objects in their natural state

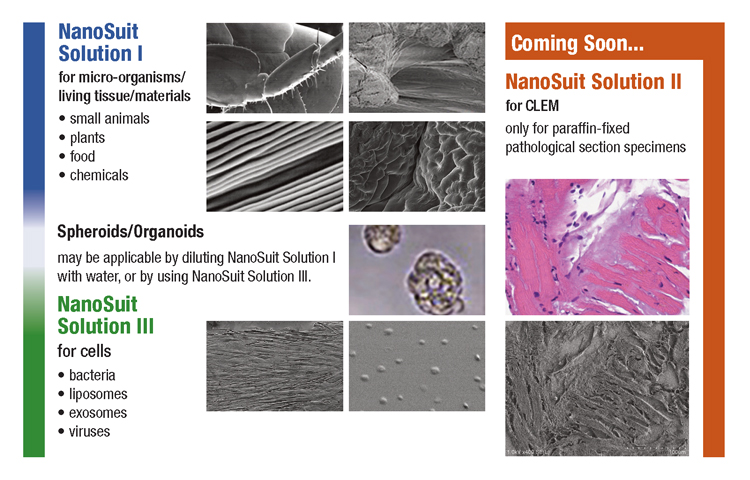

NanoSuit Selection Guide

NanoSuit Solution is available in two (soon three) types. Refer to the chart below to select the formulation which suits your application.

NanoSuit Solution for SEM, aqueous Solution - Overview

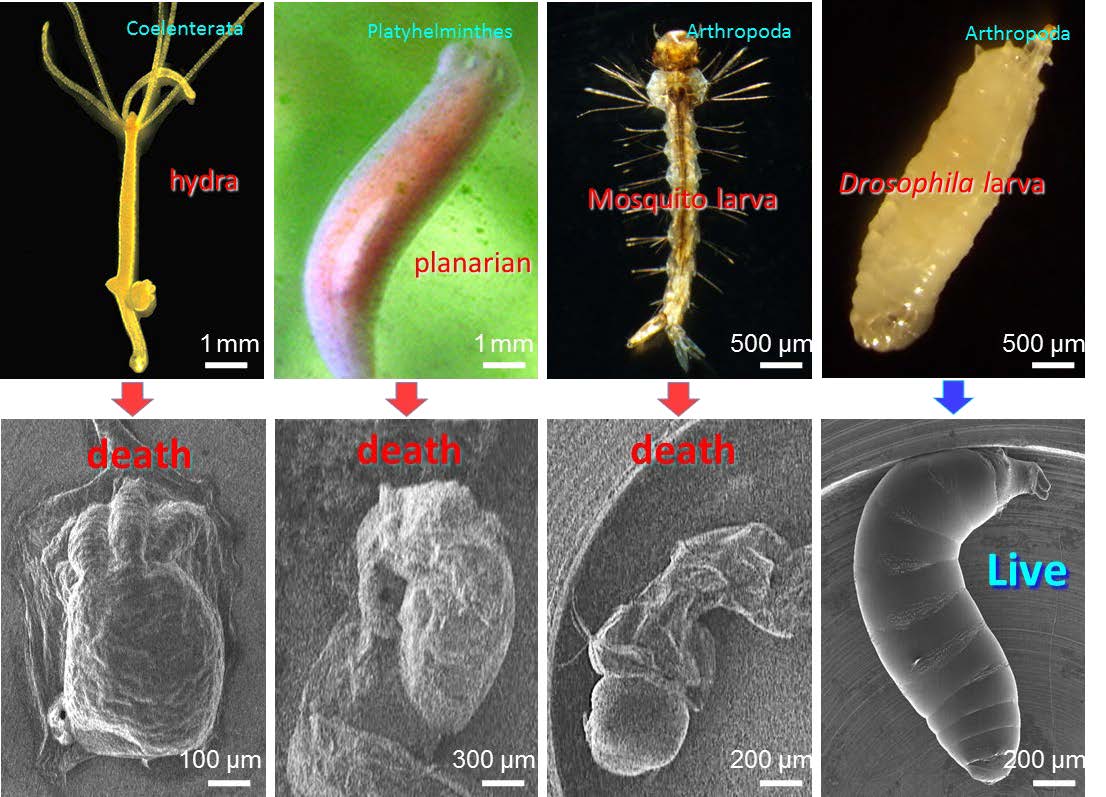

The aim of Professor Takahiko Hariyama was to investigate microorganisms using SEM, but due to loss of moisture under the vacuum condition, almost all organisms died in the electron microscope.

However, he discovered one kind of fly larva was able to survive under vacuum conditions.

He observed a very thin barrier layer was formed on the surface of the larva by electron beam irradiation. The barrier layer held moisture and kept the larva alive.

By mimicing this effect artificially, Hariyama and his colleagues invented the 'NanoSuit' technology.

NanoSuit - Examples



The 'NanoSuit'

  • Aqueous solution of the biocompatible polymer. (biologically safe material)
  • Just drop onto the objects.
  • Polymerize by electron beam or plasma irradiation, then a thin barrier layer is formed on the surface of the objects.
  • The barrier layer holds moisture contained in the objects and its conductivity provides clear SEM images.

NanoSuit - Comparison

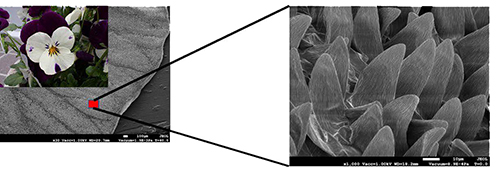

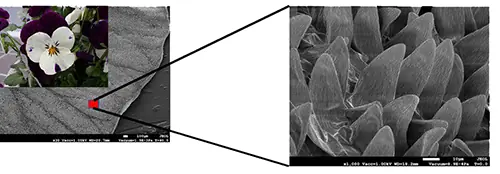

Example (flower petal)

 Control Control


Under vacuum, the petals are dried and do not retain original shape.

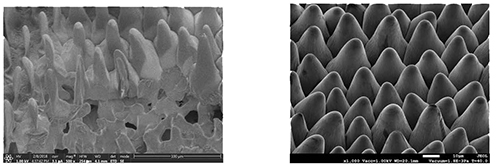

Cryo-SEM NanoSuit
Cryo-Sem vs NanoSuit

NanoSuit keeps the petal moist under vacuum and provides fine structure images of naturally shaped petal surface.

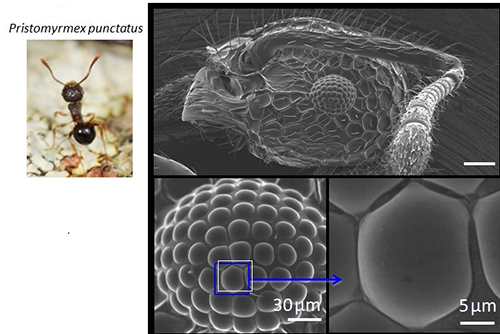

Example (insect)
Observation with NanoSuit of the minute structure of the insect's body surface with a simple operation.

NanoSuit - Insect

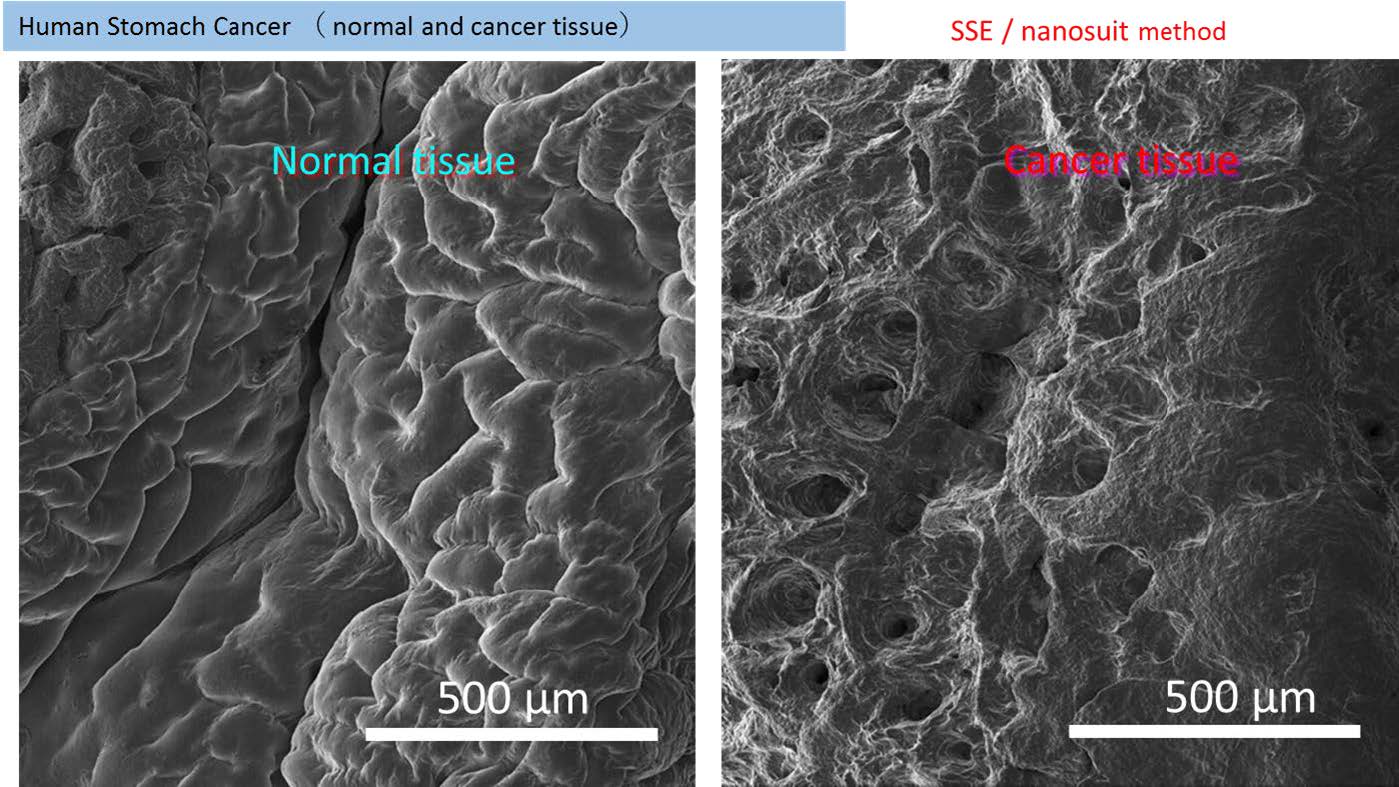

Example (living tissues)
NanoSuit keeps the texture of living cells and enables to distinguish between cancer tissue and normal tissue.

Normal Issue vs Cancer Issue

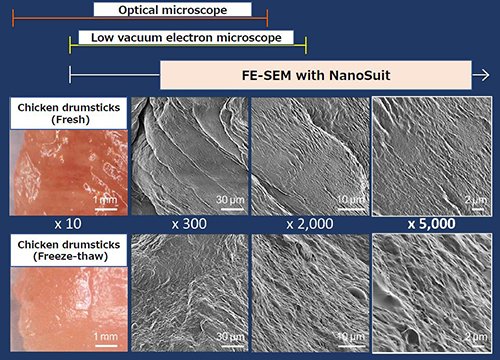

Example (chicken drumsticks)

Protection by NanoSuit solution of chicken drumsticks (fresh) surface. Observed by high resolution FE-SEM shows fibrous microstructures of uniform size.

On the other hand, chicken drumsticks (freeze-thaw) examined by the same method, show a broken fine structure of the surface and liquid substances seeping out to the surface.

Images suggest that such a difference in surface condition may be the cause for the dry feeling of the thawed food.

NanoSuit - Chicken drumsticks


Example (CLEM; Correlative light electron microscopy)
By using the NanoSuit-CLEM method, observation of sample with a light and an electron microscope is possible. Since metal deposition is not required, samples can be stored on glass slides for optical microscopy. A lot of information can be obtained by combining the stained results from the light microscope with the 3-dimensional, high-magnification results from the electron microscope.

NanoSuit - Overview


Example (pathological specimen)
Amyloid deposition of cardiac muscle tissue - NanoSuit-CLEM Method
By using the NanoSuit-CLEM method, it is possible to make a diagnosis by combining amyloid deposition in an image stained by light microscopy and changes in the surrounding tissue morphology observed using electron microscopy.

Nanosuit - pathological specimen Nanosuit - pathological specimen

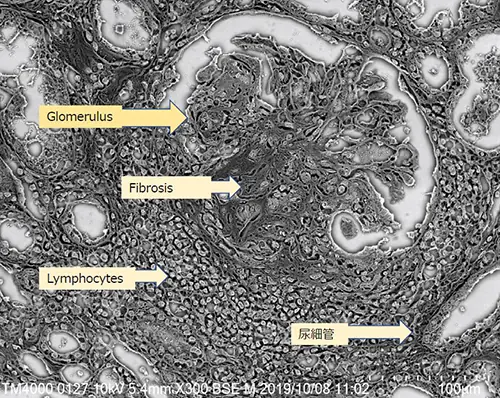

Example (pathological specimen - Nephritis)
The glomerulus is broken about half due to inflammation and lymphocytes are infiltrated.

NanoSuit - pathological specimen - Nephritis




Kawasaki, H., Itoh, T., Takaku, Y. et al. The NanoSuit method: a novel histological approach for examining paraffin sections in a nondestructive manner by correlative light and electron microscopy. Lab Invest 100, 161-173 (2020). https://doi.org/10.1038/s41374-019-0309-7

Shinmura K, Kawasaki H, Baba S, et al. Utility of Scanning Electron Microscopy Elemental Analysis Using the 'NanoSuit' Correlative Light and Electron Microscopy Method in the Diagnosis of Lanthanum Phosphate Deposition in the Esophagogastroduodenal Mucosa. Diagnostics (Basel). 2019;10(1):1. Published 2019 Dec 18. doi:10.3390/diagnostics10010001

Takaku Yasuharu, Suzuki Hiroshi, et al. 'NanoSuit®' preserves wet samples in high vacuum: direct observations on cells and tissues in field-emission scanning electron microscopy. R. Soc. open sci.4160887. 2017A modified.


Storage Conditions

Short Term: Refrigerator, 4°C
Long Term: Frozen, -10°C


NanoSuit Solution II for CLEM - Coming Soon!
