Quarz Objektträger und Deckgläser

Gute UV-Transparenz und Hochtemperatur-Beständigkeit sind Anforderungen, die für viele Forschungsanwendungen erforderlich sind und unsere Objektträger und Deckgläser aus klarem, hochwertigem Quarzglas auszeichnen. Diese Qualitätsmerkmale machen sie zu unseren beliebtesten Artikeln.
Artikel für gruppiertes Produkt
Artikelname Menge
Objektträger, Quarz, 25x 25mm, 1mm, 1 Stück

E72250-01

30,50 € 36,30 €
Objektträger, Quarz, 50x 25mm, 1mm, 1 Stück

E72250-02

44,80 € 53,31 €
Objektträger, Quarz, 75x 25mm, 1mm, 1 Stück

E72250-03

46,60 € 55,45 €
Objektträger, Quarz, 50x76mm, 1mm, 1 Stück

E72250-04

110,80 € 131,85 €
Objektträger, Quarz, 10x10mm, 1mm, 1 Stück

E72250-05

38,10 € 45,34 €
Objektträger, Quarz, 25x 25mm, 0,5mm, 1 Stück

E72250-06

60,90 € 72,47 €
Objektträger, Quarz, 50x 25mm, 0,5mm, 1 Stück

E72250-07

68,50 € 81,52 €
Objektträger, Quarz, 75x 25mm, 0,5mm, 1 Stück

E72250-08

72,40 € 86,16 €
Deckgläser, Quarz, rund, Durchmesser: 25mm, 0,2mm dick, 1 Stück

E72255-02

62,70 € 74,61 €
Deckgläser, Quarz, quadratisch, 25x25mm, 0,2mm, 1 Stück

E72256-02

62,70 € 74,61 €
Deckgläser, Quarz, rund, Durchmesser: 18mm, 0,2mm, 1 Stück

E72256-03

74,30 € 88,42 €
Deckgläser, Quarz, rund, Durchmesser: 24,5mm, 0,2mm, 1 Stück

E72256-04

76,20 € 90,68 €
Deckgläser, Quarz, rund, Durchmesser: 33,02mm, 0,2mm, 1 Stück

E72256-05

81,90 € 97,46 €
Deckgläser, Quarz, rund, Durchmesser: 25mm, 0,15-0,18mm, 1 Stück

E72256-06

97,10 € 115,55 €
Deckgläser, Quarz, quadratisch, 25,4x25,4mm, 0,2mm, 1 Stück

E72256-07

97,10 € 115,55 €
Deckgläser, Quarz, quadratisch, 25,4x25,4mm, 0,15-0,18mm, 1 Stück

E72256-08

125,60 € 149,46 €

Produktdetails

Beschreibung

Item number Shape Dimensions Thickness
Microscopy slides
E72250-01 square 25x25mm 1mm
E72250-02 rectangular 50x25mm 1mm
E72250-03 rectangular 75x25mm 1mm
E72250-04 rectangular 50x76mm 1mm
E72250-05 quadratisch 10x10mm 1mm
E72250-06 quadratisch 25x25mm 0,5mm
E72550-07 rectangular 50x25mm 0,5mm
E72250-08 rectangular 75x25mm 0,5mm

Coverslips
E72255-02 round 25mm Ø 0,2mm
E72256-02 square 25x25mm 0,2mm
E72256-03 round 18mm Ø 0,2mm
E72256-04 round 25,4mm Ø 0,2mm
E72256-05 round 33,02mm Ø 0,2mm
E72256-06 round 25mm Ø 0,15-0,18mm
E72256-07 square 25,4x25,4mm 0,2mm
E72256-08 square 25,4x25,4mm 0,15-0,18mm
E72256-09 square 25x25mm 0,075-0,125mm



Many applications require microscopy slides and coverslips that have absolute UV transparency and high temperature resistances. The quartz microscope slides and coverslips are of highest quality fused quartz glass to meet all of the following requirements.

  • The window of highest transparency to UV is between 0.15µ to 5µ.
  • Typical flatness measured 2 to 4” bands per inch.
  • Soften point is about 1250°C (2282°F).
  • Standard microscope slide thickness is 1 mm.
  • Standard coverslip thickness is 0.2 mm.

Quartz microscope slides and coverslips are made of GE124 electrically fused quartz.

Typical Trace Element Composition (ppm by weight)

Type Al As B Ca Cd Cr Cu Fe K Li
GE124 14 <0.002 <0.2 0.4 <0.01 <0.05 0.05 0.2 0.6 0.6
Type Mg Mn Na Ni P Sb Ti Zr *OH
GE 124 0.1 <0.05 0.7 <0.1 <0.2 <0.003 1.1 0.8 <5



Optical transmission properties provide a means for distinguishing among various types of vitreous silica as the degree of transparency reflects material purity and the method of manufacture.

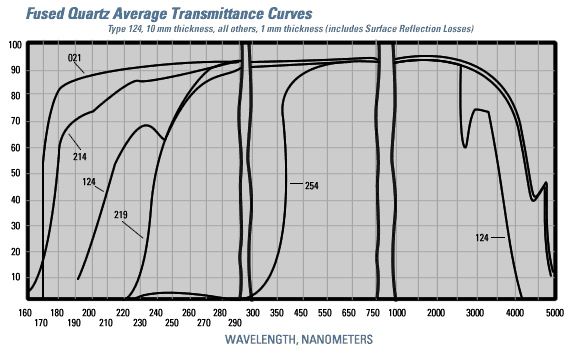

UV-Transmission von GE124 Quarzglas

UV Cutoff

The transmission curve illustrates that GE124 fused quartz has a UV cutoff (1 mm thickness) at < 200nm and a small absorption at 245nm.

High IR Transmission

The IR edge falls between 4.5 and 5.0 micrometers for a 1 mm thick sample.

GE 214/124 electrically fused quartz is a very efficient material for the transmission of infrared radiation. Its infrared transmission extends out to about 4µm with little absorption in the 'water band' at 2.73µm. This makes Momentive Performance Materials's electrically fused quartz different than flame fused quartz (often referred to as 'wet' quartz). This difference is seen in the transmission for the IR range. The IR Transmission figure illustrates this difference.

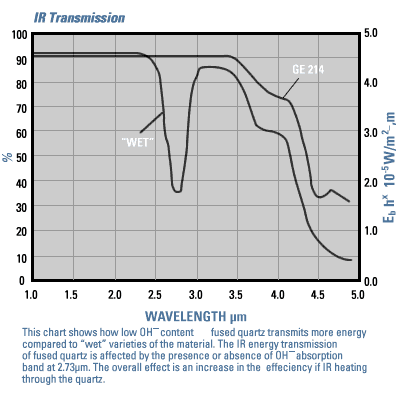

IR-Transmission von GE124 Quarzglas

Conversion to other thicknesses can be accomplished with the following formula:

T = (1-R)2 e -at

Where:
T = percent transmission expressed as a decimal.
R = surface reflection loss for one surface.
e = base of natural logarithms
a = absorption coefficient, cm-1
t = thickness, cm

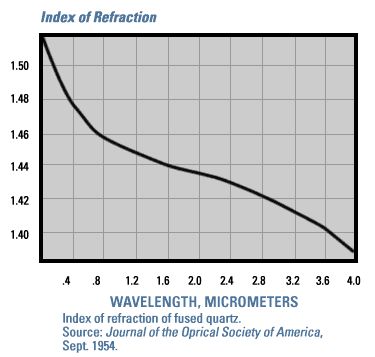

Index of Refraction for Fused Quartz

Brechungsindex von GE124 Quarzglas

Graphs compliments of supplier.



Weitere Informationen

Weitere Informationen
Material
Quarzglas
Materialbezeichnung Quarz Glas Typ: GE124 "verschmolzenes" Quarz
