Vibratom 5100mz

E5100MZ

Das 5100mz ist ein vibrierendes Präzisionsmikrotom im unteren Preissegment, das viele Features der 7000smz Premiumserie, wie den Vibrationsmechanismus, die inneren und äußeren Streckbäder und dem bedienerfreundlichen Kontrollsystem, besitzt.
Dieses Einsteigermikrotom mit einem fixierten Klingenhalter und einer z-Achsen Fehlerrate von 5-8 µm ist perfekt geeignet für Arbeiten in der Histologie, Schnitte von organotypischer Kultur und niedrigauflösenden Bildgebung.

Beschreibung

Features

Z-axis calibration unit as optional accessory
Mechanism Z-axis error of less than 10µm
Vibration speeds from 50 to 80Hz
Amplitudes from 0.5mm to 1.5mm
Fine control of the blade advance (min. 0.1mm/sec)
Set start and stop position of blade travel
Remote controls allowing for sterile use in culture hood
Ice water bath easily removed for cleaning Optional cold light and magnifier for clear observation
Optional Peltier cooled bath

Specifications

Optimal Z-Axis Deflection	5-8 µm
Opti-cal Vertical (Z-axis) Calibration Device	Optional Accessory
Blade Oscillation Frequency Range	50-80 Hz
Frequency step size	5Hz
Blade Oscillation Amplitude (nominal)	Minimum: 0.5 mm Maximum: 1.5 mm
Amplitude Step Size (nominal)	0.5mm
Advance Speed Resolution During Slicing	0.1mm/sec
Cutting head advance speed:	Min: -2.0mm/sec ( -1.00mm during slicing) Max: +2.0mm/sec (+1.00mm during slicing)
Bath table rise & fall speed	Max. 1.0mm/sec
Specimen Retraction as Blade Retracts	Yes
Section thickness step size	1µm
Max. (vertical) travel of bath table	19mm
Max. travel of cutting head	40mm
Max Specimen Size	33 x 50 x 19mm
Memory to Store Section Thickness	Yes
Multiple User Settings	8 different
Operating Modes	Manual or semi-automated Slice Window

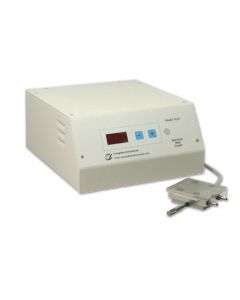

Cooling Options	Ice bath or optional Model 7610A Tissue Bath Cooler
Dimensions	13.7" x 17.7 x 13.7" 350 x 450 x 350 mm
