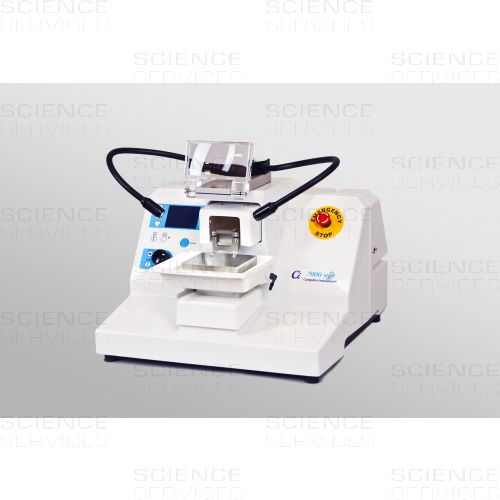

Vibratom 7000smz-2

E7000smz-2

Das 7000smz-2 ist ein Präzisionsvibratom der Premiumklasse und bietet feinste Gewebeschnitte für Präparationen in der Patch-Clamp-Technik oder hochauflösenden Bildgebung. Mit einer z-Achsen Ablenkung von weniger als 1µm über eine breite Spanne von Vibrationsgeschwindigkeiten und –amplituden hinweg, liefert das Vibratom qualitativ hochwertige Schnitte von biologischen Geweben aller Art. Das 7000smz-2 stellt ein hochentwickeltes Präzisionsmikrotom dar und ist mit einer eigenen z-Achsen Kalibriereinheit ausgestattet.

Beschreibung

Features

Includes a Z-axis calibration unit
Minimal Z-axis deflection (less than 1µm) at all speeds and amplitudes
Z-axis blade adjust minimizer
Blade holder angle to user requirement
Set start and stop position of blade travel
Tissue sample automatically retracted before blade returns to start point
Full range of adjustable parameters with 8 customizable user profiles
Vibration speeds from 50 to 120Hz
Amplitudes from 0.5mm to 2.5mm
Controlled blade advance at 10µm per sec
"Auto" programming by storage of the first slicing
Ice water bath easily removed for cleaning
Optional LED light and scope for clear observation
Leaf spring vibratory mechanism for optimal longevity and accuracy

Specifications

Optimal Z-Axis Deflection	Sub-µm (±0.1µm)
Opti-cal Vertical (Z-axis) Calibration Device	Included as standard
Blade Oscillation Frequency Range	50-120Hz
Frequency step size	5Hz
Blade Oscillation Amplitude (nominal)	Min: 0.5mm Max: 2.5mm
Amplitude Step Size (nominal)	0.25mm
Advance Speed Resolution During Slicing	0.01mm/sec
Cutting head advance speed:	Min: -4.0mm/sec (-1.00mm during slicing) Max: +4.0mm/sec (+1.00mm during slicing)
Bath table rise & fall speed	Max. 1.0mm/sec
Specimen Retraction as Blade Retracts	Yes
Section thickness step size	1µm
Max. (vertical) travel of bath table	19mm
Max. travel of cutting head	40mm
Max. Specimen Size	33 x 50 x 19mm
Memory to Store Section Thickness	Yes
Multiple User Settings	8 different
Operating Modes	Manual, semi-automated Slice Window or fully automated Profile Repeat
Cooling Options	Ice bath or optional Model 7610A Tissue Bath Cooler
Dimensions	16.5" x 15.7" x 10.6" 420 x 400 x 270mm
